Solar Panels

Solar panels harvest clean, renewable energy from sunlight. EcoFlow's rigid, portable, and flexible solar panels offer industry-leading 23% efficiency for unbeatable performance. IP68-rated for durability in extreme heat and rain ensures many years of worry-free use even in harsh conditions. From 60W - 400W rated power output options.

EcoFlow's range of solar panels has you covered, whether you're looking for on-the-go solar or a more permanent installation. All EcoFlow's solar panels are made using highly efficient monocrystalline solar cells and designed for easy setup and use. Just plug into your portable power station, Power Kits, or even third-party PV systems and store electricity for home or away.

How Do Solar Panels Work?

1

Solar panels convert sunlight into DC
(direct current).

2

An inverter turns DC into AC (alternating current) so it
can be used to run appliances.

3

Energy is sent to your home.

4

Spare electricity goes into the power grid or is stored in batteries for later use.

Portable Solar Panels

EcoFlow portable solar panels are incredibly versatile, compact, and lightweight, making them ideal for almost any situation — including going off-grid. Unfold and prop the solar panels up with the built-in stand in seconds. Quickly charge your portable power station while camping or at home for blackout preparation.

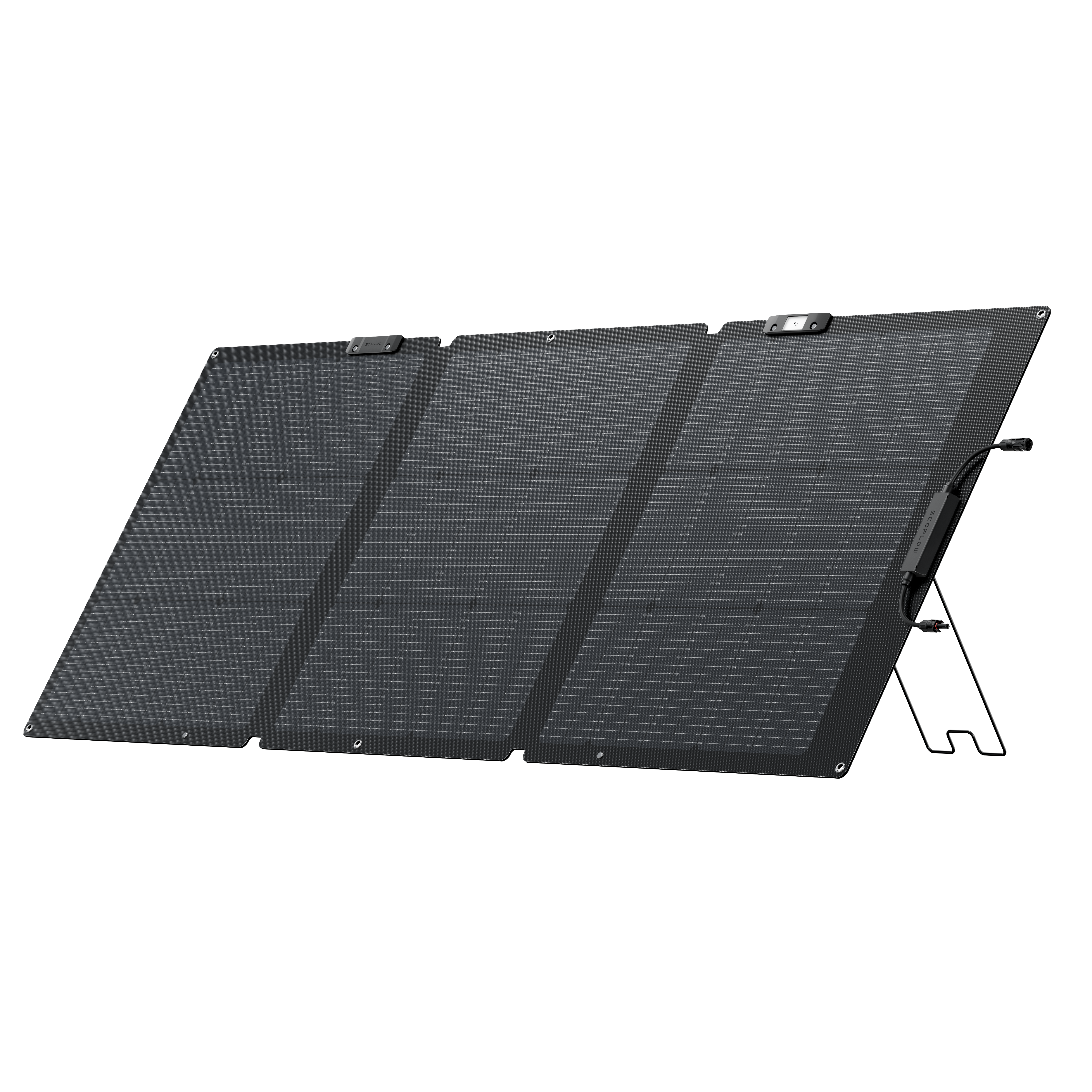

NextGen 160W Portable Solar Panel

Rated Power

160W (±5W)

Cell Type

N Type TOPCon monocrystalline silicon

Efficiency

25.00%

Weight

Approx. 12.3 lb (5.6 kg)

Dimensions

Unfolded: 23.6×63.4×1.0 in./600×1610×25 mm Folded: 23.6×22.5×1.3 in./600×572×32 mm

Open Circuit Voltage

21.3V (Vmp 18.6V)

Short Circuit Current

9.1A (Imp 8.6A)

Warranty

12 months

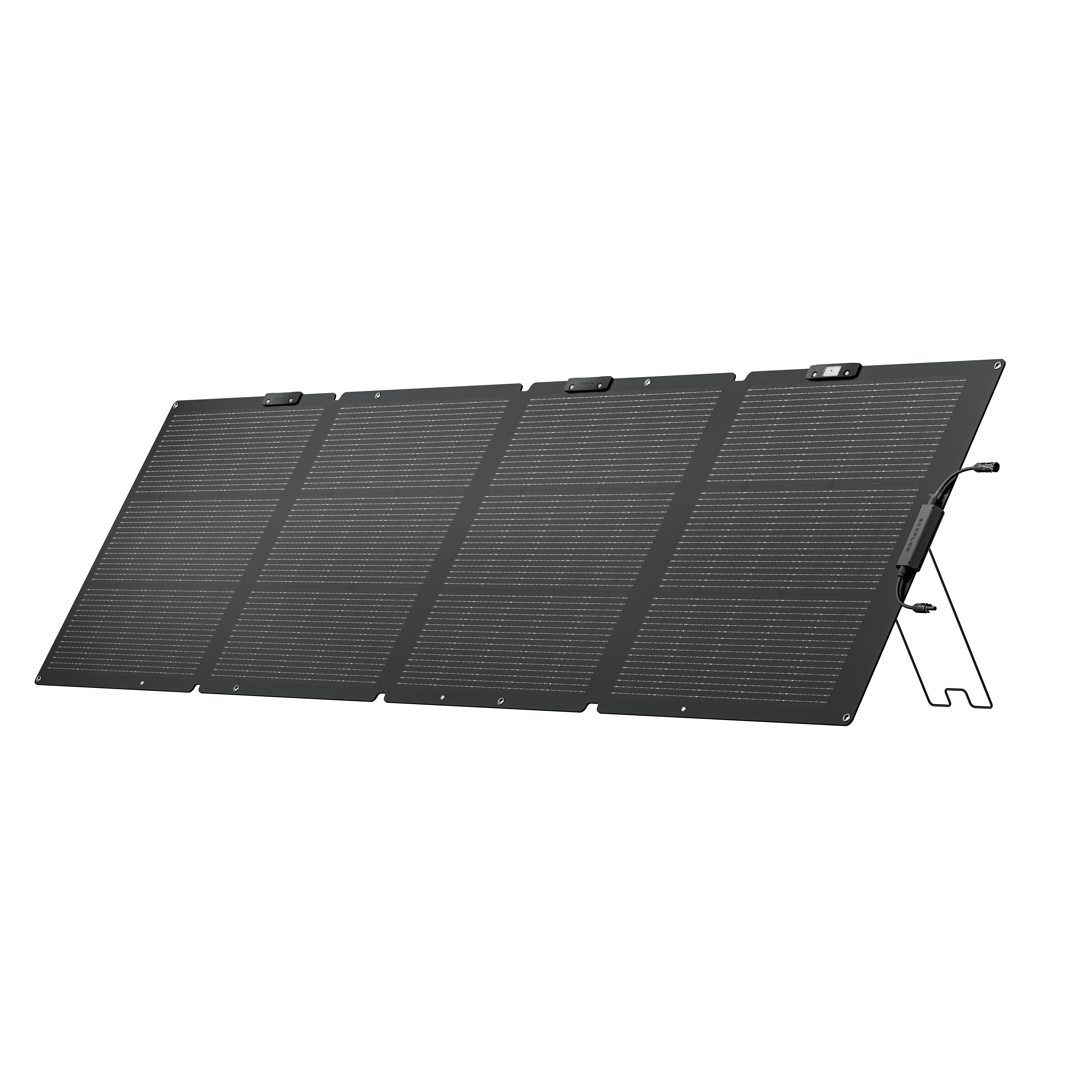

NextGen 220W Portable Solar Panel

Rated Power

220W (±5W)

Cell Type

N Type TOPCon monocrystalline silicon

Efficiency

25.00%

Weight

Approx. 15.9 lb (7.2 kg)

Dimensions

Unfolded: 23.6×83.6×1.0 in./600×2123×25 mm Folded: 23.6×22.5×1.3 in./600 x 571×32 mm

Open Circuit Voltage

21.5V (Vmp 18.4V)

Short Circuit Current

12.4A (Imp 11.9A)

Warranty

12 months

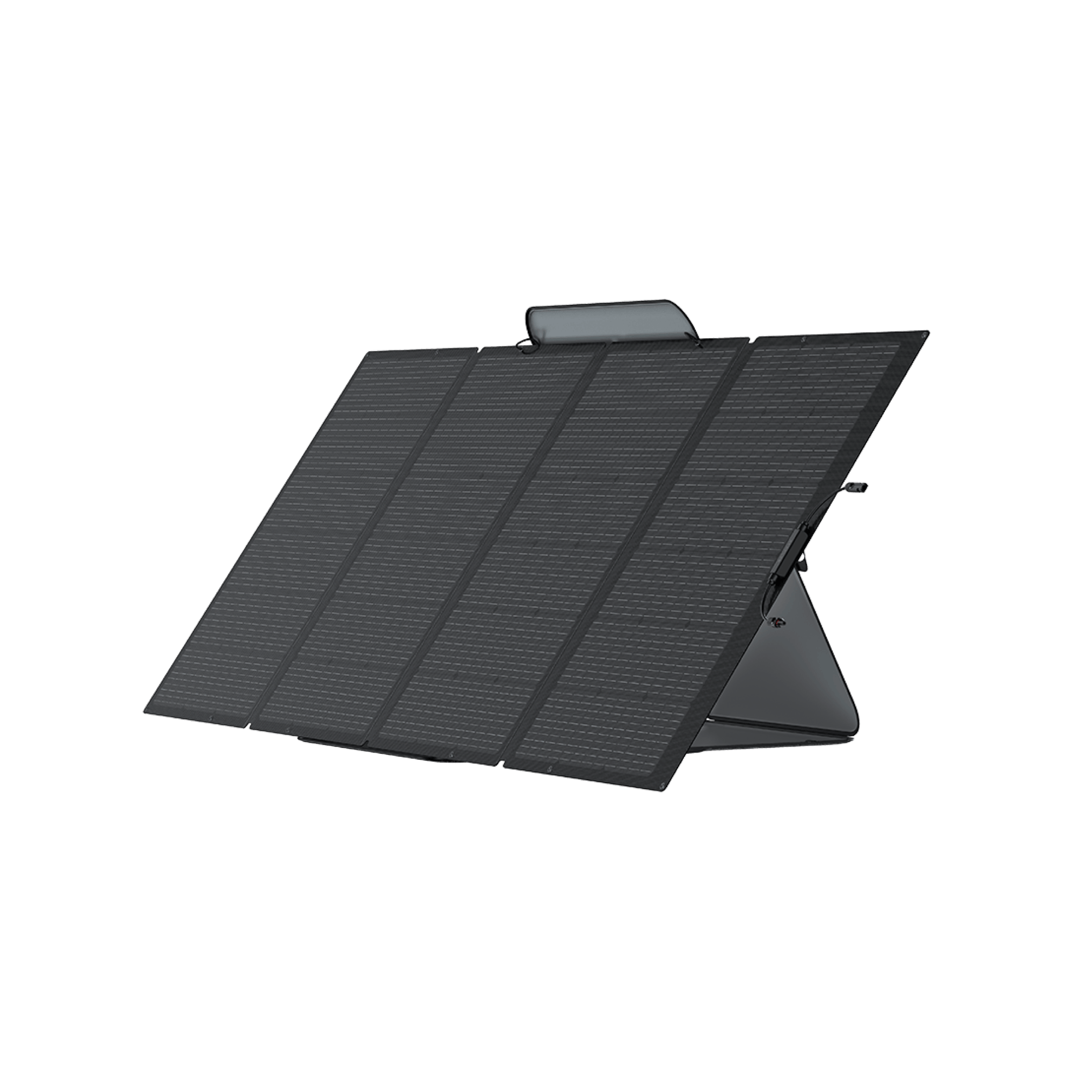

400W Portable Solar Panel

Rated Power

400 W

Cell Type

Monocrystalline silicon

Efficiency

22.60%

Weight

Approx. 16 kg

Dimensions

41.7*93.1*0.98 in (105.8*236.5*2.5cm)

Open Circuit Voltage

48V (Vmp 41V)

Short Circuit Current

11A (Imp 9.8A)

Warranty

24 months

Flexible Solar Panels

These lightweight solar panels can be installed on any surface, including fabric roofs such as tents or awnings. Its flexible design caters to curved roofs and can be fixed seamlessly to motorhomes and boats. Without a bulky frame and pre-drilled eyelets around the perimeter, our flexible solar panels are extremely easy to mount and move at any time.

100W Flexible Solar Panel

Rated Power

100W (+/-5W)

Cell Type

Monocrystalline Silicon

Efficiency

23%

Weight

Approx. 2.3 kg

Dimensions

1055*612*25 mm

Open Circuit Voltage

20.3V

Short Circuit Current

6.3A

Warranty

36 months

Why Choose
EcoFlow Solar Panels

Wide Variety of Types and Wattage

EcoFlow offers an exceptional range of solar panel types, from portable, folding solar panels with built-in self-supporting stands to lightweight, easy-to-attach flexible solar panels and robust, rigid solar panels. Plus, with wattages from 60-400W, we've got your every power need covered. Connect them in parallel and series to get the most out of your panels.

Highly Efficient

All EcoFlow solar panels are made from extremely efficient monocrystalline solar cells, providing conversion efficiency rates of between 22-23.4%, so that you get more electricity than with other cell types.

Plug-and-Play

Made with a universal connector, the entire EcoFlow solar panel range is plug-and-play. Without a complicated setup, they can easily be plugged into a solar generator or microinverter and begin capturing energy immediately.

Benefits of
Solar Panels

Offset Energy
Bills

Store clean solar energy during the day, then use it to power your appliances during peak hours, reducing your reliance on the power grid, and avoiding expensive energy bills.

Charge During an
Outage

When an outage runs over several days, easily keep your generator topped up by charging it during the daylight hours.

Lower Your Carbon
Footprint

Utilising renewable energy, such as solar, to power your home, vehicle, or camping trip can significantly reduce the amount of fossil fuel you use, in turn, reducing your carbon footprint.

Recharge Batteries
Anywhere

Whether at home, in a motorhome or at the beach, take advantage of the sun to top up your solar-powered battery.

Let’s Answer Your Questions

What does a solar panel do?

A solar panel converts sunlight into electricity. It is made up of cells that have a special property called the photovoltaic effect. When sunlight hits these cells, it creates an electric current by energising electrons in the material. The flow of energised electrons generates direct current (DC) electricity. Multiple solar cells are connected together to form a solar panel, and multiple panels are wired together to create an array. The DC electricity is then converted to alternating current (AC) using an inverter, making it compatible with the electrical system of a building. The generated electricity can be used to power appliances and devices, stored in batteries, or sent back to the grid.

How many solar panels are needed to run a home?

The number of solar panels needed to power a home depends on various factors, including the home's energy consumption, the location's sunlight availability, the efficiency of the solar panels, and the desired level of energy independence. Here's a general guideline to help you estimate:

  1. Calculate your energy consumption: Determine your home's average monthly or annual energy use in kilowatt-hours (kWh).
  2. Assess sunlight: Consider the amount of sunlight your location receives daily and throughout the year. Areas with more sunlight will require fewer solar panels.
  3. Determine solar panel capacity: Solar panels are typically rated in watts (W) or kilowatts (kW). To calculate the number of solar panels required, you need to know the capacity of each panel. For example, if you had 100W panels, 1 kW would equal ten panels.
  4. Consider efficiency and losses: Solar panels have an efficiency rating that indicates the percentage of sunlight they can convert into electricity. Consider this efficiency when calculating the number of panels required.
  5. Calculate the number of panels: Divide your energy consumption by a solar panel's average daily energy production. This calculation will give you an estimate of the number of panels needed.

Are solar panels worth it?

Solar panels can be a worthwhile investment for many homeowners. Here are some factors to consider when evaluating the value of solar panels:

  1. Cost savings: Solar panels can significantly reduce or even eliminate your monthly electricity bills.
  2. Return on investment (ROI): ROI can vary depending on factors like installation costs, energy savings, and incentives.
  3. Increasing property value: Solar panels can enhance the value of your property.
  4. Environmental benefits: By installing solar panels, you can reduce your carbon footprint and contribute to a more sustainable future.
  5. Incentives and tax benefits: Depending on your location, there may be various financial incentives available to support the installation of solar panels.

Which solar panel is best?

The "best" solar panel depends on various factors, including your specific needs, budget, location, and preferences. Here are some key considerations when evaluating solar panels:

  1. Efficiency: Higher-efficiency panels can generate more electricity in the same amount of space.
  2. Quality and reliability: Choose solar panels from reputable manufacturers known for producing reliable and durable products.
  3. Warranty: Look for extended warranties that cover product and performance.
  4. Cost: Consider your budget and the cost-effectiveness of solar panels.
  5. Reviews and reputation: Research customer reviews and feedback to gain insights into their performance, reliability, and customer satisfaction.

Aesthetics: If the appearance of the solar panels is essential to you, consider options that offer a sleek and visually appealing design.

Can a house run on solar power alone?

Yes, it is possible for a house to run on solar power alone. A house can generate enough electricity from solar panels to meet its energy needs by installing a properly designed and sized solar energy system. This typically involves the installation of solar panels on the roof or in an open area with good sunlight exposure.

To achieve a self-sustaining solar-powered home, several components are typically included in a solar power system:

  1. Solar panels
  2. Inverter
  3. Battery storage
  4. Net metering (grid connection)

It's important to note that the feasibility of running a house solely on solar power depends on factors such as the size of the solar system, energy consumption, available sunlight, and local regulations. Additionally, energy efficiency measures, such as using energy-efficient appliances and optimizing energy usage, can help maximize the effectiveness of a solar-powered home.
